External Inspections
Topside deployed, splash zone and subsea inspection - Crawler tools

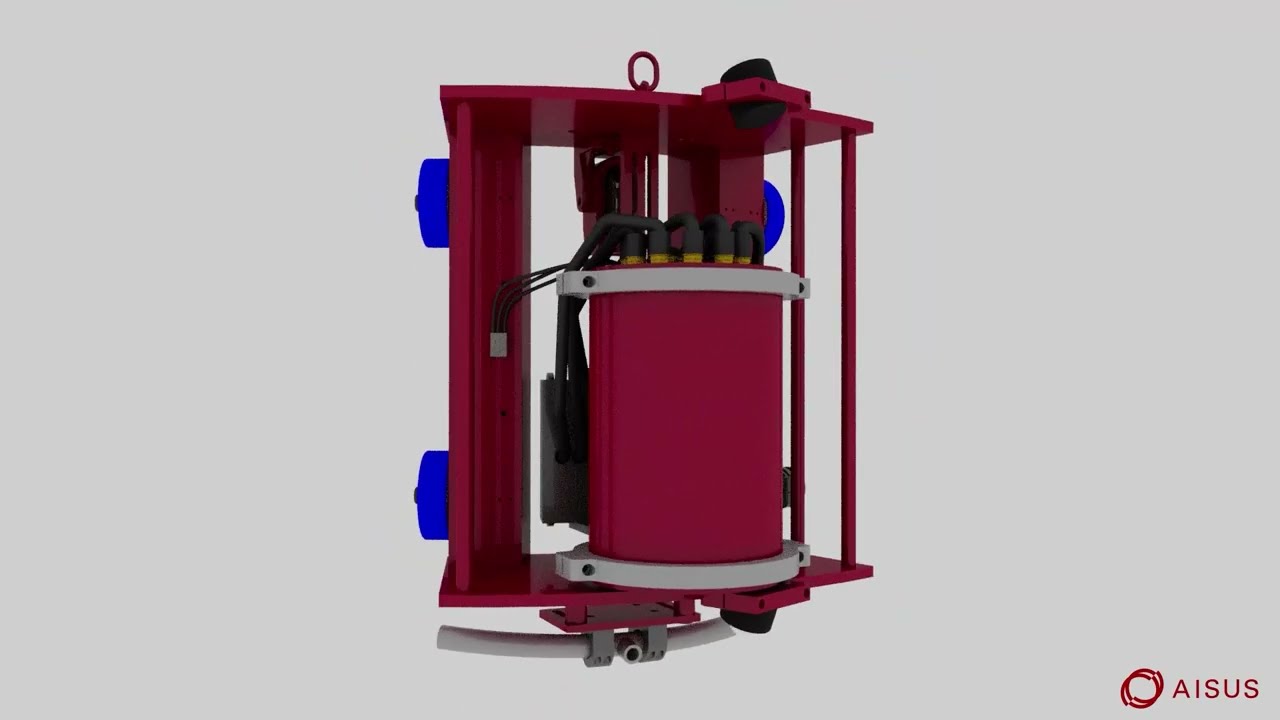

Aisus designed and manufactured Auriga is a remotely controlled ultrasonic wall thickness corrosion mapping tool. Created specifically for external inspection of tubular structures in harsh remote areas. The crawler Auriga is equipped with electromagnets to allow for a strong adhesion allowing for high pressure cleaning on board and a smooth transition from the topside through the splash zone to subsea areas.
Auriga is adaptable and can carry a bespoke combination of inspection techniques alongside to its superior high pressure cleaning capabilities.
This crawler can be deployed on: Caissons, Risers, Conductors, J- tubes, Monopiles, Jetty Piles, Pipelines and Jacket structures from 8" upwards. Smaller sizes are also available on request.
Specification Title | Specification Description |
---|---|
Suitable for internal or external deployment
|
Not limited for external use but also inline crawlers used for internal inspections for pipes 6" upwards.
|
Subsea range
|
Subsea rated with range of 1000 metres
|
Inspection capabilities with electro-magnet or earth magnet solutions, customisable for:
|
HD Cameras, Pulsed Eddy Current (PEC), Ultrasonic Testing (UT), Alternative Current (AC) Field Measurement, Laser Scanning, Cutting/Gauging Tools and High Pressure Cleaning
|
Deployment Methods
|
Scanning through the splash zone with a rope access team (from installation) / Diver or ROV deployed (subsea)
|
Component size
|
Diameter 10" - Flat (smaller sizes available on request) - Wall thickness 5-35mm
|
Reviews
The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.
[9/9]
Relative Business Impact

Sign up or log in to your Explorer Plus or higher plan to get access to all the 2 deployment references.
Last Deployment Year
