Wheeled Horizontal Lay System (WHLS)

0 Reviews
2 Followers
Deployed by 1 company

Versatile system to facilitate the deployment and recovery of flexible products.

Page last modified
April 11 2024

The Wheeled Horizontal Lay System (WHLS) by Maritime Developments is an innovative, portable solution designed to facilitate the recovery of flexible products, including cables, subsea umbilicals, risers and flowlines at heavier loads from deeper waters.

Based on MDL's portable Horizontal Lay System (HLS) design - already proven as a compact package for safe and efficient recovery of SURF with buoyancy modules - the innovation comes from the application of a wheel mechanism which results in low-friction handling: allowing for the system's pulling forces to match the deployment capability offered by the tensioner.

By incorporating a wheel into the design, the HLS' recovery capacity increases without additional space requirements or weight from additional steel structures. The 2-point contact on the product results in reduced MBR requirements, opening up the product outer diameter (OD) window for wider application.

The system consists of a range of features facilitating recovery of various lengths and diameters of products, including: an integrated hang-off for handling end fittings; davits for overhead handling of products; integrated work platform for over the side or moonpool works and an adjustable wheel position to accommodate various product diameters.

The WHLS keeps true to the base HLS design, as the complete package is portable, compact, applicable on vessels of opportunity - in summary, a cost-effective way to kit-out a locally-available vessel to handle high loads and tackle recovery projects.

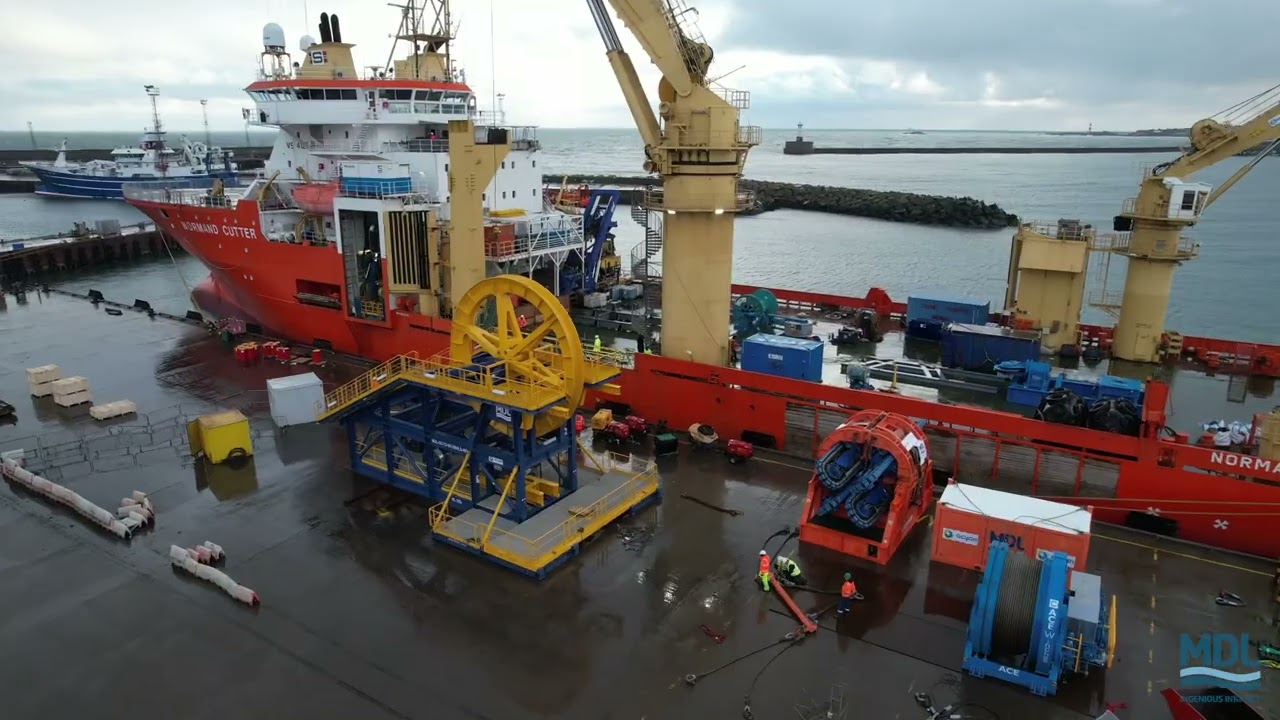

Thanks to its road transportability, the WHLS can be assembled on the quayside and easily mobilised on board the vessel with a single lift, followed by a second lift for the tensioner. The system can be employed with any readily available low-cost vessel worldwide, instantly transforming it into a dedicated flex lay or retrieval solution for the duration of the project. Utilising a locally available, smaller tonnage vessel not only enhances cost-effectiveness but also reduces the project's carbon footprint, contributing to environmental sustainability.

One of the key advantages of all MDL equipment is its capability to convert a bare back deck into a flexible handling solution. This feature proves invaluable on decommissioning scopes, where budgets are significantly more constrained due to the end of a field's life or of the associated equipment. By addressing this challenge, the WHLS enables operators to deliver on their decommissioning obligations without the high cost of deploying specialist pipe handling vessels.

With over 20+ years track record in innovative design and manufacture of lifting and pulling equipment for the marine markets, MDL is an expert in delivering bespoke equipment that works straight out of the box. The technology is developed fully in-house, including intuitive control systems that allow safe integration of systems for efficient operations.

Pros & Limitations
1
Road-transportable for most efficient transit to mobilisation port
1
Fully integrated – Plug & Play – negating idle, non-productive time
1
Versatile – modifiable with range of MDL tensioner systems (line pull / squeeze requirements and top chutes (MBR))
1
Modular – can be assembled on quayside off critical path before vessel arrival
1
Single lift mobilisation on board with the vessel’s crane (+ second lift for the tensioner)
1
Compact and adaptable to project requirements – can be mobilised on vessel stern, side or over moon pool
1
Accessible – all operational areas are accessible by stairs, walkway and platforms complete with handrails
1
Safest offshore product handling thanks to MDL tensioner technology with Failsafe Grip
1
Integrated hang-off system for buoyancy installation ad removal
1
Integrated pad basket storage located beside the tensioner to provide access for safe and efficient tensioner pad change out when offshore
1
E-stops mounted at each end of the HLS base frame allowing for safe control of operations
Specification
Specification Title Specification Description
Lay Spread Type
Horizontal Lay System
Max Product Tension
100Te (dynamic load)
Design Life
25 years
Design Temperature
Operational: -10ºC to +50ºC; Survival: -20ºC to +65ºC
Min Pipe Diameter
90mm OD
Max Pipe Diameter
400mm OD
Overboarding Chute Radius/Capacity
3.5m/100Te
Inboard Roller Capacity
10Te
Hydraulic Davit Beams Capacity
90º coverage/5Te manual beam trolleys
Hang Off Capacity
100Te SWL
A&R Capacity
100Te SWL
WHLS Geometry Dimensions (approx. depending on configuration)
18.9m x 9.6m x 11.6m (LxBxH); 18.9m x 12.6m x 11.6m (LxBxH) (Work Platform Extended)
Weight (excl. Tensioner)
112 Te
Clearance between davits and work table
5.6m
Clearance between davits and hang off
4.9m
Lifting Equipment
All items supplied with dedicated lift points and lift rigging. Optional spares/workshop container can be supplied.
Power Requirements (HLS only)
3 phase, 440V (+earth), 60Hz, 140 amp supply, 55kW HPU required
Design Appraisal
Design appraised in accordance with DNV standards
Assumed Conditions
Humidity: up to 100%; Atmosphere: marine / high salinity
