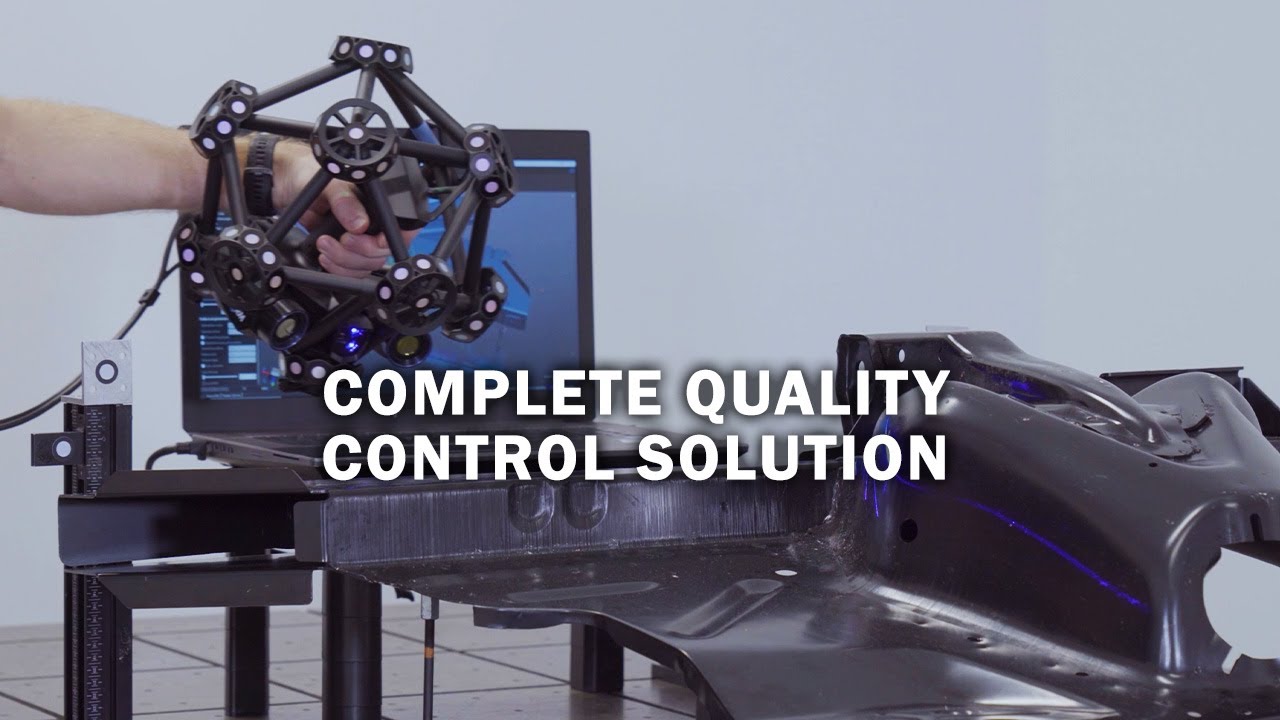

MetraSCAN 3D

The most flexible portable 3D measurement solution engineered for shop floor conditions

Unexpected costs, production and part approval delays from non-conformities are no longer an issue when using Creaform’s portable optical CMM 3D scanner, the MetraSCAN 3D. Help operators better manage processes and respond faster to the industry’s increasing quality control (QC) requirements—all without compromising the manufacturing throughput. Optical metrology provides measurement accuracy that is insensitive to the instabilities of the environment, making the MetraSCAN 3D optical CMM the prime choice for shop-floor quality control metrology.

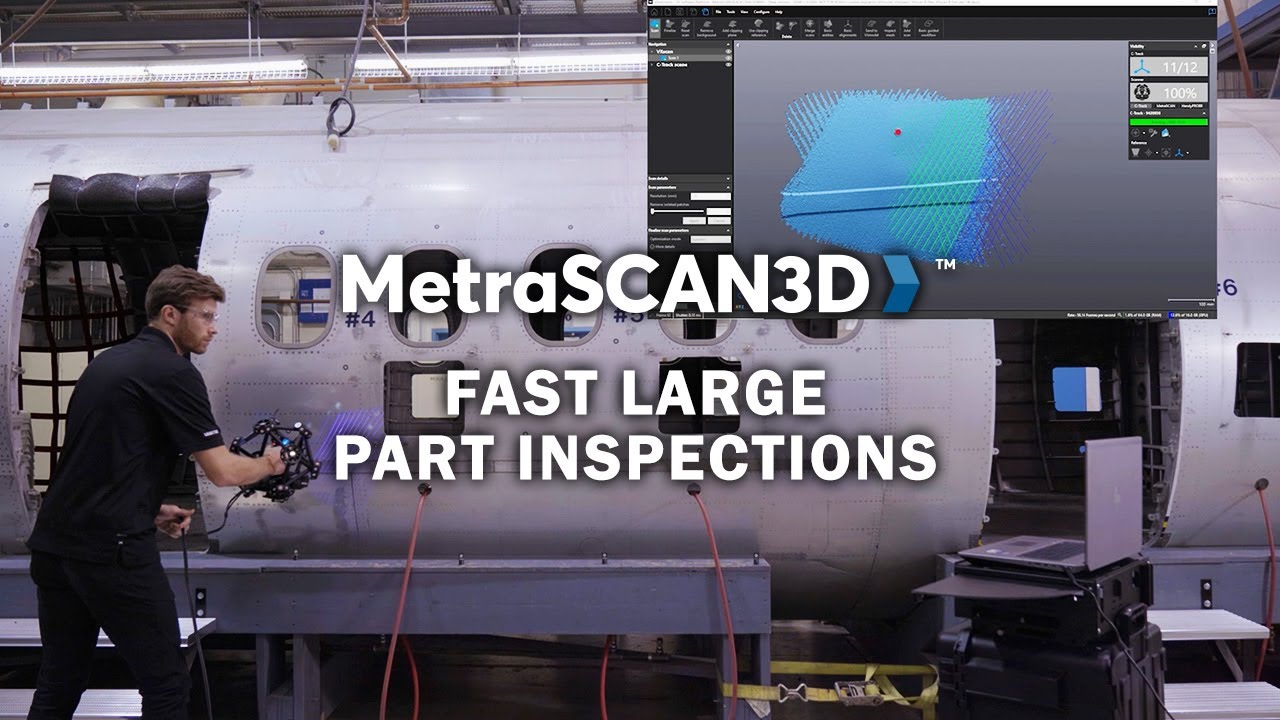

With its extendable measuring volume, incredible speed, shop-floor accuracy and impressive capabilities on challenging materials, the MetraSCAN 3D represents the most complete metrology-grade 3D scanner on the market.

Pro/con

Scan any type of material, even black, multicoloured and shiny surfaces
No accuracy drift over time with the easy-to-perform field calibration procedure
No rigid setup required: the part and the system can be moved freely at any time during measurement
Short learning curve and intuitive operation
Only runs on Creaform's VXElements software

Specification

Areas of Application Aerospace | Manufacturing | Transport | Research | Power Generation | Heavy Industries
Certifications / licences EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive, RoHS 2 Substance Restrictions Directive) | IP50 | WEEE
Compatibility Compatible with softwares like: Geomagic® Solutions | PolyWorks | Metrolog X4 | Spatial Analyzer | Verisurf | CATIA V5 | SOLIDWORKS | PTC Creo | NX | Solid Edge | Inventor | PowerINSPECT
Operating conditions 5–40°C | 10–90% Humidity
Output Output formats include: .dae | .fbx | .ma | .obj | .ply | .stl | .txt | .wrl | .x3d | .x3dz | .zpr | .3mf
Weight 1.38 kg (3.0 lbs.)

About Creaform

Founded in 2002 in Lévis (Québec, Canada), Creaform is a world-class leader in 3D measurement technology as well as 3D engineering services. We develop, manufacture and distribute disruptive portable and automated 3D scanning solutions to thousands of clients in over 75 countries. Our innovative technology benefits a wide range of industries such as automotive, aerospace, manufacturing, consumer products, research & education, NDT, heavy industries and power generation.

With offices and innovation centers in 13 countries, our team is now counting more than 600 dedicated employees and more than 150 distributors worldwide
