CUBE-R

0 Reviews
0 Followers
Deployed by 1 company

The fastest turnkey 3D scanning coordinate measurement machine

Page last modified
April 11 2024

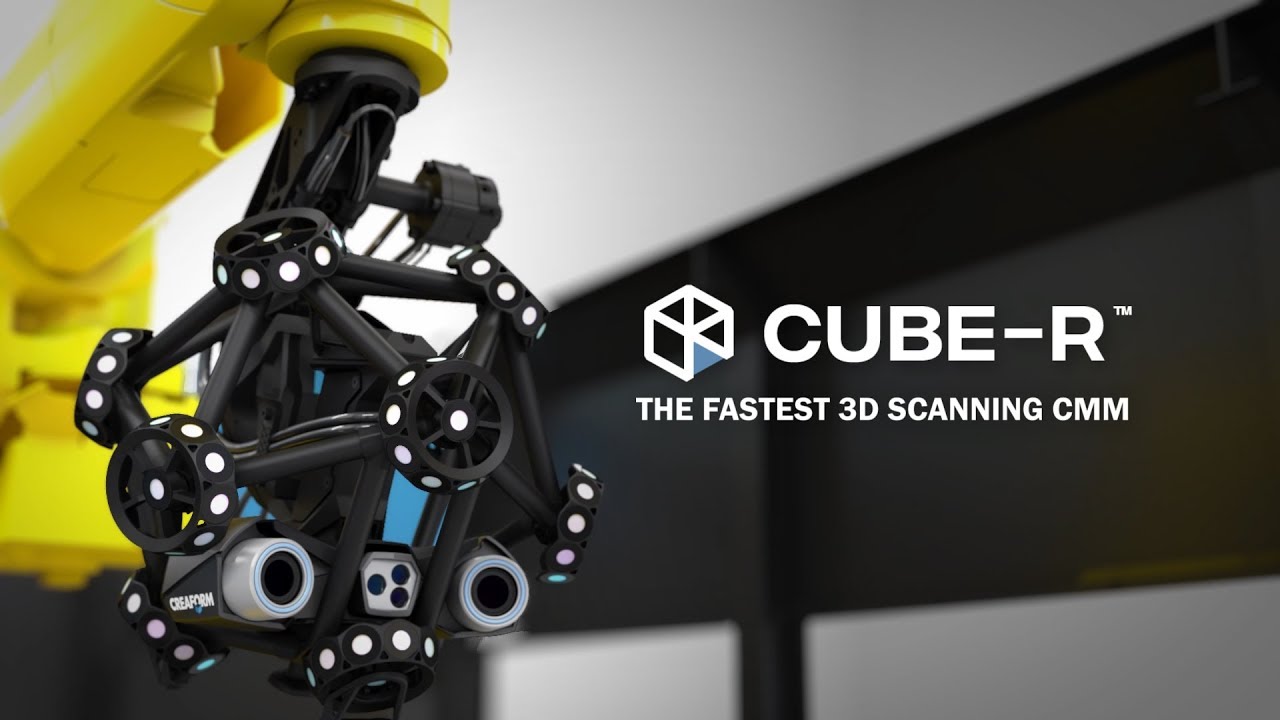

CUBE-R™ is a fast, reliable, and efficient complete turnkey solution for automated quality control applications. This automated 3D measuring machine features MetraSCAN 3D-R, a powerful robot-mounted optical 3D scanner that can be integrated into factory automation systems without compromising on accuracy. It is the perfect alternative to solve any productivity issues caused by bottlenecks at the traditional coordinate measuring machine (CMM). Unlike existing solutions, our 3D scanning machine enables manufacturing companies to harness the power of optical 3D measurement and industrial automation. This CMM measuring machine optimises the production cycle and throughput resulting in better product quality.

Pros & Limitations
1
Performs inspection up to hundreds of parts a day (even on complex surfaces)
1
No integration required, fully enclosed and shop-floor-ready
1
Designed to minimize operator interaction and help perform automatic inspections
1
Allows easier scanning sequence programming
1
Highest measurement rate among all laser scanners: 480,000 measurements/s
0
Requires item to be static during scanning
Specification
Specification Title Specification Description
Accuracy
Volumetric accuracy: Up to 0.078 mm (0.0031 in)
Areas of Application
Aerospace | Manufacturing | Transport | Research | Power Generation | Heavy Industries
Certifications / licences
EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive, RoHS 2 Substance Restrictions Directive) | IP50 | WEEE
Dimension
289 x 235 x 296 mm (11.4 x 9.3 x 11.7 in)
Operating conditions
5–40°C | 10–90% Humidity
Weight
Scanner: 4.46 kg (9.83 lbs) | Scanner + Calibration bar: 5.70 kg (12.57 lbs) | C-Track: 5.7 kg (12.5 lbs)

Reviews

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

Founded in 2002 in Lévis (Québec, Canada), Creaform is a world-class leader in 3D measurement technology as well as 3D engineering services. We develop, manufacture and distribute disruptive portable and automated 3D scanning solutions to thousands of clients in over 75 countries. Our innovative technology benefits a wide range of industries such as automotive, aerospace, manufacturing, consumer products, research & education, NDT, heavy industries and power generation. With offices and innovation centers in 13 countries, our team is now counting more than 600 dedicated employees and more than 150 distributors worldwide.
