X-treme Slot Jet Isolate™

0 Reviews
1 Follower

Efficient decommissioning system using slotting and isolation

Page last modified
March 11 2025

Slot Jet Isolate (SJI™) is a patented multi-purpose mechanical slotting system designed by Titan Energies to improve the overall efficiency of decommissioning projects, specifically for the Plug and Abandonment (P&A) of wells. The SJI™ system aims to optimize the conventional methods for well P&A operations.

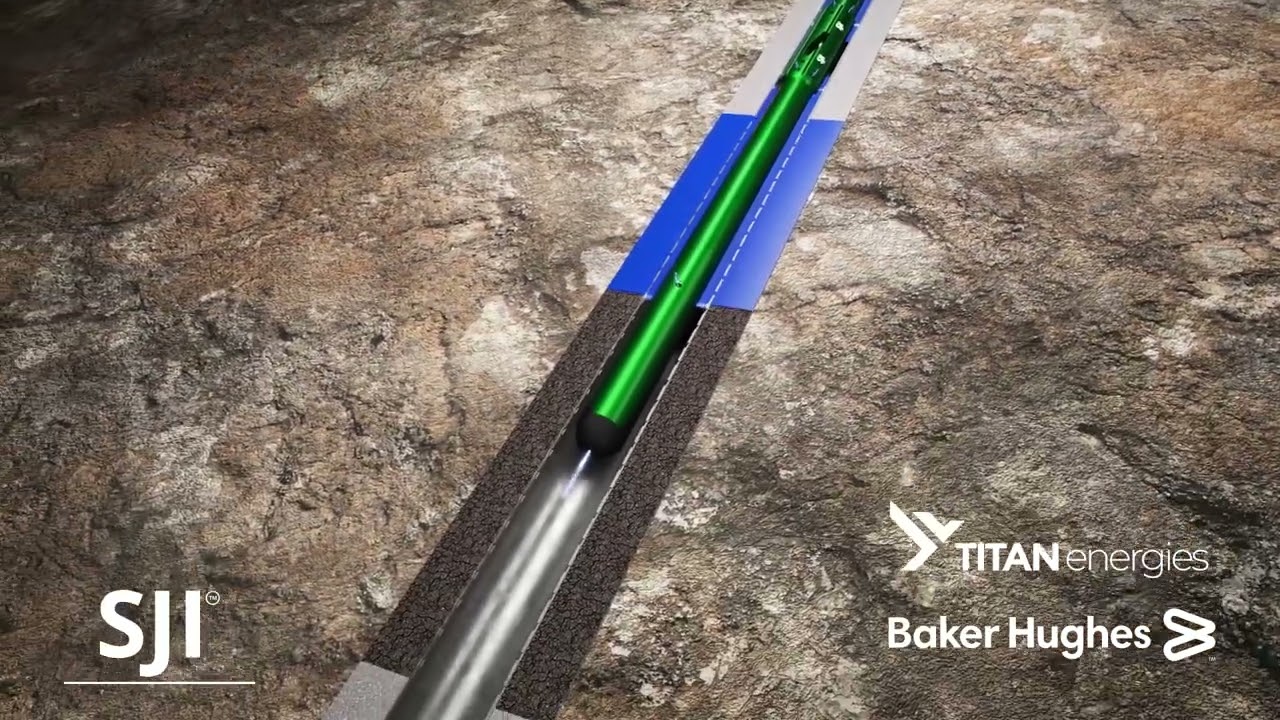

The SJI™ tool is designed to run into the well to the desired depth, where it can initially slot the casing while simultaneously jetting the slots and cleaning up the outside of the casing. Once the casing has been suitably slotted and cleaned, the tool can then fully wash the casing and place the isolation material both outside and inside the casing to create a complete P&A barrier.

Key features of the SJI™ technology include a repeatable hydro-mechanical multi-use slotting, jetting, and isolation system, a single-trip system, a one-bladed design for slotting one casing string, a large Tubing Flow Area (TFA) per activation, HPHT compliance, a proven reliable execution method, variable blades for slotting or stand-off, surface key performance indicators during execution, and the ability to change the slotted length/depth in the hole without waiting for log interpretation. Additionally, the system does not require explosives, a sump, or permits, making it a safer and more efficient solution.

Pros & Limitations
1
Repeatable hydro-mechanical multi-use slotting, jetting, and isolation system
1
Single trip system
1
One bladed design to slot one casing string
1
Large TFA per activation
1
HPHT compliant
1
Proven reliable execution method
1
Variable blades depending on operation, provide slot or stand-off
1
Key performance indicators at the surface during execution
1
Slotted length/depth can be changed in the hole (no waiting for log interpretation)
1
No explosives
1
No sump required
1
No permits required
Specification
Title Description
Theme/Discipline
Well Plug and AbandonmentAbandonment & Decommissioning
Core Tech
Hardware Tool
Tool sizes
5 3/4" SJI™, 8 1/4" SJI™, 12 1/4" SJI™
Casing sizes
7" and above, 9 5/8" and above, 13 3/8" and above
Upper connection
NC38 Box, NC50 Box, NC50 Box
Lower connection
NC38 Pin, NC50 Pin, NC50 Pin
Features
Repeatable hydro-mechanical multi-use slotting, jetting, and isolation system, Single trip system, One bladed design to slot one casing string, Large TFA per activation, HPHT compliant, Proven reliable execution method, Variable blades depending on operation, provide slot or stand-off, Key performance indicators at the surface during execution, Slotted length/depth can be changed in the hole (no waiting for log interpretation), No explosives, No sump required, No permits required

Reviews

Get access to reviews

to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

In 2024, Titan Torque transitioned to Titan Energies, marking a pivotal moment in our journey as we expanded our focus and vision for the future. Founded in 2008, Titan Torque initially built its reputation through expert torquing services. However, with an eye on long-term growth and diversification, we took a strategic leap into the plug and abandonment (P&A) market in 2015. This expansion laid the foundation for Titan Energies to evolve into a comprehensive service provider, delivering a broader range of solutions tailored to the ever-changing needs of the energy sector.

A key development in our evolution was the integration of SJI technology into our portfolio. The success of incorporating this advanced technology has allowed us to grow within the P&A sector, and more recently, to venture into renewables. Titan Energies is now positioning itself as a leader in both traditional and emerging energy industries.

As an owner-operated company, Titan Energies is driven by agility, allowing us to quickly adapt and make decisions that best serve our clients. Our proven track record, built over years of experience, has earned us a loyal customer base and established our reputation as a trusted partner. We are committed to maintaining the highest standards of quality and safety in all our operations, ensuring that every project is executed with excellence and attention to detail.

Today, Titan Energies offers a full spectrum of services, including decommissioning and slot recovery solutions, renewables, precision torquing, downhole tool servicing, and a fleet of equipment dedicated to research and development manufacturing and testing. Our continued focus on innovation and expanding into new sectors ensures that we are always prepared to meet the evolving needs of our clients and the energy industry at large.
