Terra UT Drone - Ultrasonic Thickness Measurements with drone

1 Review
6 Followers
8 Deploys

For a safer workplace and a lower downtime

Page last modified
February 22 2024

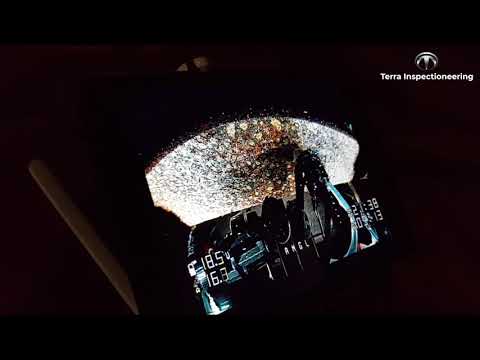

Terra Inspectioneering executes ultrasonic thickness (UT) measurements using drones. With the Terra UT drone it is possible to execute certified steel thickness measurements at hard to reach places at height, such as storage tank walls, roofs and rafters or boiler tubes.

The UT drone is Terra's proprietary development and is based on patented technology that enables the drone to firmly and precisely clean the spot to be measured and press the UT probe against the surface. The drone has been specially developed for indoor use in industrial confined spaces and can be controlled in the presence of steel and concrete.



Pros & Limitations
1
Reduced HSE risk by mitigating work at height and confined space entry
1
Eliminates scaffolding and rope access costs
1
Fast deployment, automatic UT data cloud storage
1
Reduced downtime of assets
1
Cleaning brush for optimal surface preparation
1
Detailed monitoring of UT A-Graph live on screen
1
Support for tank shell, roof, floor and rafters
0
If surface is too heavily corroded, UT measurements are not possible
Specification
Specification Title Specification Description
Accuracy
Visual inspection: details until 0,1mm are distinguishable. UT measurements: 0,1 mm accuracy.
Areas of Application
Storage tanks (carbon steel, stainless steel, aluminium). All other steel equipment that need thickness measurements.
ATEX certified
The UT drone can be equipped with certified LEL meter for Atex zone 1 application.
Capabilities
Integrated couplant (gel) dispenser for optimal contact between UT probe and surface. Integrated surface cleaning brush. Calibrated UT measurement device with certified calibration report.
Certifications / licences
EEMUA159, API653, Level II NDT engineers, Calibration report of UT sensor available, VCA*, Terra UT Drone operator certificate.
Compliance
Inspection and reporting in oil and gas industry compliant with EEMUA159, API653, API510 codes or equivalent.
In-service inspection possible
Yes, from outside.
Output
Raw UT Data is stored in cloud for optimal traceability of data. Deliverable is certified UT report.
Redundancy
Redundant ground station, flight controller and battery.
Speed
Max. 300 UT measurements per day.

Reviews (1)

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

Terra Inspectioneering started as RoNik Inspectioneering at May 13th, 2016. Since then, Terra Inspectioneering is known for their inspections using aerial robots, also known as drones.

Our specialty is the non-entry inspection of industrial, hazardous and enclosed spaces, such as storage tanks, chimneys, boilers, furnaces, pipelines, etc. Our focus is on ultrasonic thickness measurements, visual inspections and thermal inspections.Terra Inspectioneering delivers certified inspection reports conformant to standards like API-653 and EEMUA-159.
