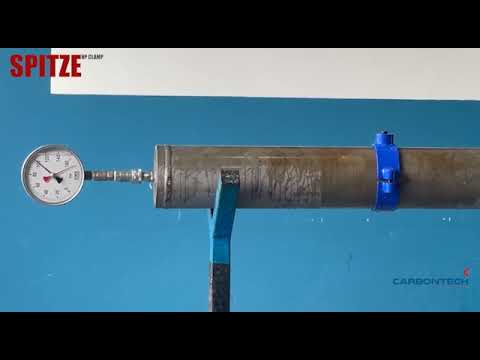

SPITZE HIGH PRESSURE CLAMP
Emergency Online leak repair system!
Page last modified
September 29 2025
The Spitze HP clamp is engineered and manufactured in accordance with ASME VIII Div 1 for the temporary repair of live high-pressure leaks without having to shut down or isolate the system.
The low-profile standoff height of the clamp is intended for a composite overwrap using any of the Revowrap systems for long term repairs.
The Spitze HP clamp is resistant to the harsh chemical environment prevalent in the oil, gas and petrochemical industries.
The Spitze HP clamp is engineered to operate in working temperatures from -46°C to 315°C and has a pressure rating of up to 200 Bar with a maximum application pressure of 150 Bar.
The installation of the Spitze HP clamp is non-invasive and may be applied to live piping systems without shutting down for the repair on hole sizes up to 25mm Diameter.
Spitze HP clamp may be applied to piping sizes up to 56”, and may be installed on most substrates and is suitable for Subsea application.
Pros & Limitations
0
Maximum Design Temperature 315°C
0
Maximum Design Pressure 200 Bar
0
Maximum Application Pressure 150 Bar
1
Standard Size Range ½" - 56"
1
Fast, Non-invasive repair - does not require hot work
1
Resistant to Harsh chemicals
Specification
| Title | Description |
|---|---|
| Theme/Discipline | PipelinesRepair |
| Core Tech | Hardware Tool(Construction) Material |
|
Temperature
|
The Spitze HP clamp is engineered to operate in working temperatures from -46°C to 315°C.
|
|
Pressure
|
The Spitze HP clamp is engineered to operate in working pressure up to 200 Bar with a maximum application pressure of 150 Bar.
|
|
Defect size
|
The installation of the Spitze HP clamp is non-invasive and may be applied to live piping systems without shutting down for the repair on hole sizes up to 25mm Diameter.
|
Technology Readiness Level
The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.
[9/9]
Development
Technology demonstration
Mature / Proven
Carbontechs makeup consists of qualified engineers with a very strong background in composite rehabilitation systems. We have been involved with projects with through our distributors with Industry leaders globally. Our affiliate companies are world leaders in composite systems. Carbontech vouch to provide dependable, responsible and accurate information regarding the capabilities of our systems.
Country of Headquarters
South Africa
