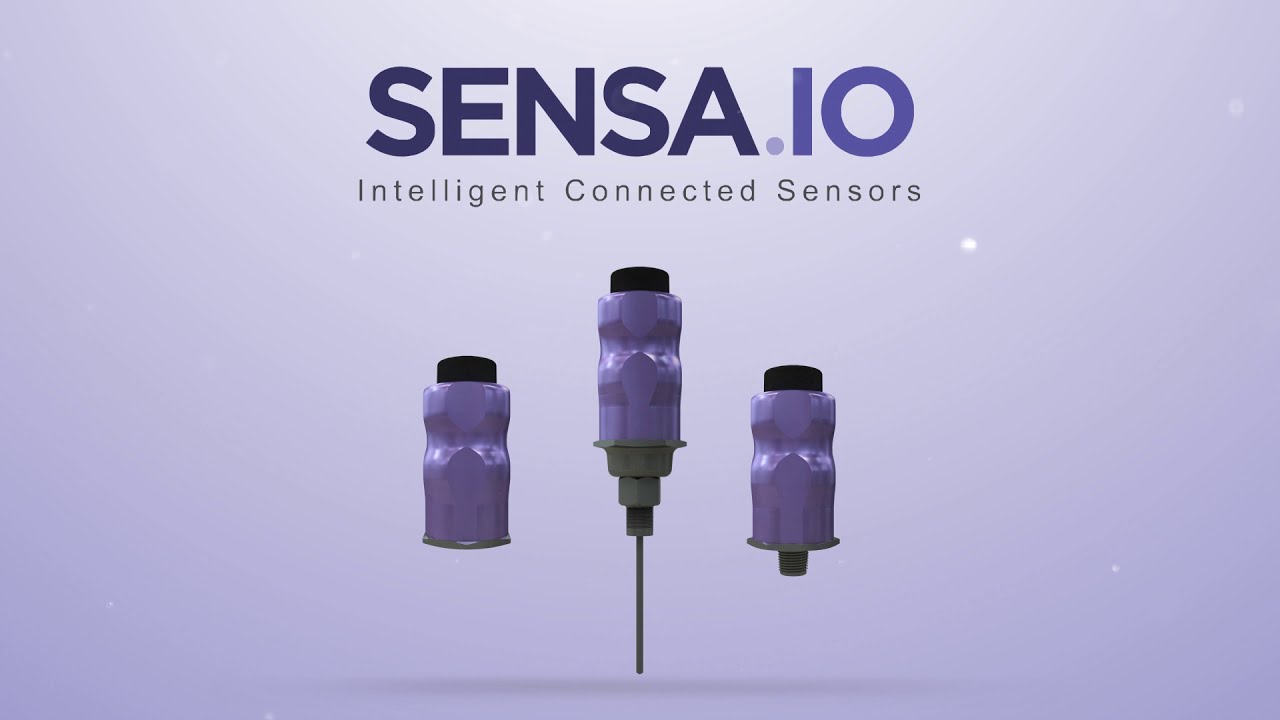

SENSA.iO LoRaWAN Pressure Sensor

0 Reviews
1 Follower
6 Deploys

Intelligent sensors driving connectivity

Page last modified
April 11 2024

The intelligent wireless pressure sensors from SENSA.iO are designed to monitor the pressure of gas and liquid within a specific pipeline or equipment on large-scale production sites. This improves safety and performance at remote locations and in hazardous industrial environments with live, intelligent technology.

Due to their high corrosion resistance, these wireless pressure transmitters are suitable for all hazardous locations, including within zone 1 areas where the presence of flammable gases or dust is possible. This includes petrochemical plants, offshore/onshore sites, steel plants, and more.

SENSA.iO wireless pressure sensors use LoRaWAN for remote communication. LoRaWAN has excellent sensitivity reception, good radio interference capacity, a communication distance of 10km, and even further under optimum communication conditions.

The modular design and structure of SENSA.iO Wireless pressure sensors make it easy to replace batteries as there is no need to remove them from the pipeline. They can also be installed anywhere in the factory without any cable wiring work. This makes their on-site maintenance quick and easy.

SENSA.iO sensors can also be intuitively configured and remotely monitored using an Android or iOS smartphone or device with Bluetooth 5.0.

Pros & Limitations
1
Remote monitoring up to 10km anywhere in the world
1
Up to 10 years battery life with field-replaceable components
1
Fully ATEX/IECEX/UKCA/MET Class1Div1 certified
1
Designed to withstand even the harshest of environments (Zone 0/1)
1
Wide pressure ranges up to 1,000 bar / 14,500 Psi
1
Cortex® 150Mhz-M4 for detailed sensor analysis and data
1
Connectiong to any IIoT platform or chosen system
0
Non-regional interoperability with LoRaWAN
Specification
Specification Title Specification Description
Applications
✓Oil&Gas ✓Chemical&Petrochemical ✓Biomass&Geothermal ✓Hydrogen ✓Pharmaceutical ✓Mining ✓Aerospace ✓Energy ✓Utilities and Transport ✓Recycling
Measuring Ranges
-1-1 up to 1000 bar / -14.5 .14.5 up to 14,500 Psi
Accuracy
Up to 400 bar / 5,800 Psi (0.15% FS), Up to 600 bar / 8,700 Psi (0.25% FS), Up to 1000 bar / 14,500 Psi (0.35% FS)
Type of Temperature
Absolute or Relative
Long term stability
Max 0.2% FS / Year
Ambient Temperature
-40 … + 59°C
Storage Temperature (recommended)
+ 25 °C
Protection rating
IP65 & IP67 NEMA 4x
Wetted Part Material
Stainless Steel 316L or Inconel 625
Communication
LoRaWAN, Bluetooth® 5
Antenna
Omni-directional multiband
Range
Up to 10km
Battery
Field replaceable D-size format

Reviews

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

SENSAiO is a brand of EDGE TECHNOLOGIES SAS.

We design, develop and manufacturing smart connected devices for severe environments.

Incorporated in France with offices located in Aix-En-Provence with objective to develop an “AI” based on deep neural networks which will equip the whole range of our cutting edge electronic measurement sensors, very low consumption, and which will have for vocation to convert traditional industrial equipment (pipelines, valves, pumps, motors, etc.) into intelligent devices connected wirelessly.
