Quickflange™ Weldless Connectors

0 Reviews
3 Followers
9 Deploys

Permanent gas tight flange-to-pipe connections without welding

Page last modified
May 11 2023

For almost 20 years, our patented Quickflange™ technology has built up a proven track record as a leading provider in cold work solutions, offering clients a permanent repair option for improving pipeline integrity and flow assurance eliminating the need for welding or hot work.

With an extensive range, Quickflange™ is a safe, cost-effective and efficient solution generating up to 80% time saving over traditional welding.

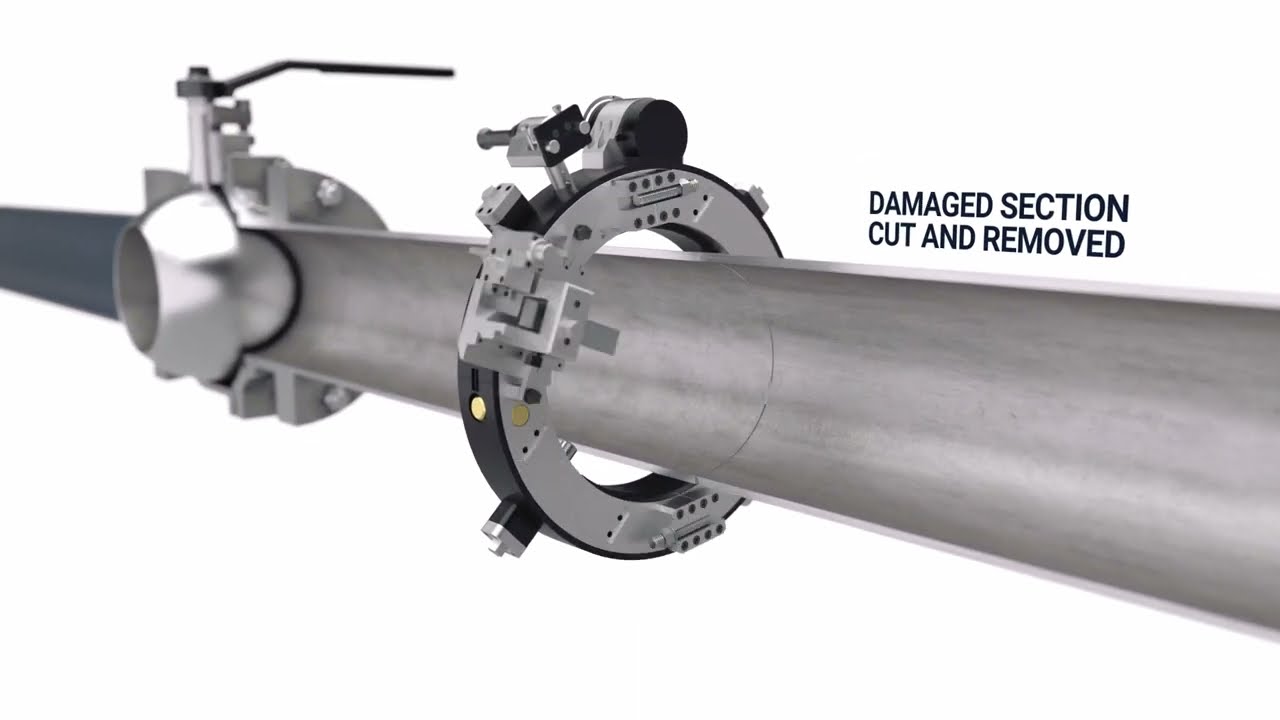

By combining our Quickflange™ connector with with our bespoke Quickflange activation tool, the process of installing a Quickflange weldless connector is both quick and easy.  Once the line is isolated a straight cut is crucial to ensure the Quickflange™ sits flush to the pipe edge.  The hydraulic tool is aligned into the pipe and activated to the required pressure.  During this process, the cone of the tool quickly extends allowing the segments to flare swaging the pipe into the pre-machined grooves of the Quickflange connector.  The tooling is then reversed concluding the installation creating the permanent gas tight seal.

Pro/con

No welding preparation, inspection or habitat requirements
Fast repair times reducing shutdown
Permanent long-term solution
Easy to install
Less manpower required compared to a weld
Client technicians can be trained to carry out the install themselves
Can only be applied on straight sections of pipe

Specification

Accuracy Highly accurate compared to welded connections as the connection is based on groove technology allowing for more accurate cutting and replacement of spool sections.
Asset life extension Quickflange is extensively used to repair or replace pipelines both onshore and offshore from sizes ¾” to 14”.
Compliance DNV and ABS Type Approved.
Cost Cost effective solution | Reduced manpower | Higly efficient | Fast turnarounds with “off the shelf” product available.
Lifespan Permanent solution for improving pipeline integrity and flow assurance.
Pressure class 150# to 2500#
Repairs Quickflange™ can be used as means to repair damaged or corroded pipework as well as modification or construction of new pipework through to decommissioning of redundant lines.
Repeatability 20,000 installations performed worldwide over the last 2 decades.
Safety No hot work, emissions or spark potential.
Speed 80% minimum time saving over welding.

Relative Business Impact

Do you have experience with this technology that you want to share?

Login or create an account with only your email address to continue.

continue
Technology Readiness Level

[7/9]

Development Technology demonstration Mature / Proven
Would you like to contact the supplier? Log in and message them directly!

About ICR Integrity Ltd

ICR Integrity Ltd (ICR) is a global provider of specialist repair, inspection and integrity solutions primarily for the oil and gas, power, defence, nuclear, utilities and renewables industries.

Headquartered in Aberdeen, ICR operates in global locations with operational bases in the UK, Norway, Abu Dhabi, USA and Australia as well as partners in over 25 countries worldwide.
