MEG ARTS®

0 Reviews
0 Followers
Deployed by 1 company

Real-Time Assurance for Pipeline Conditioning

Page last modified
March 20 2025

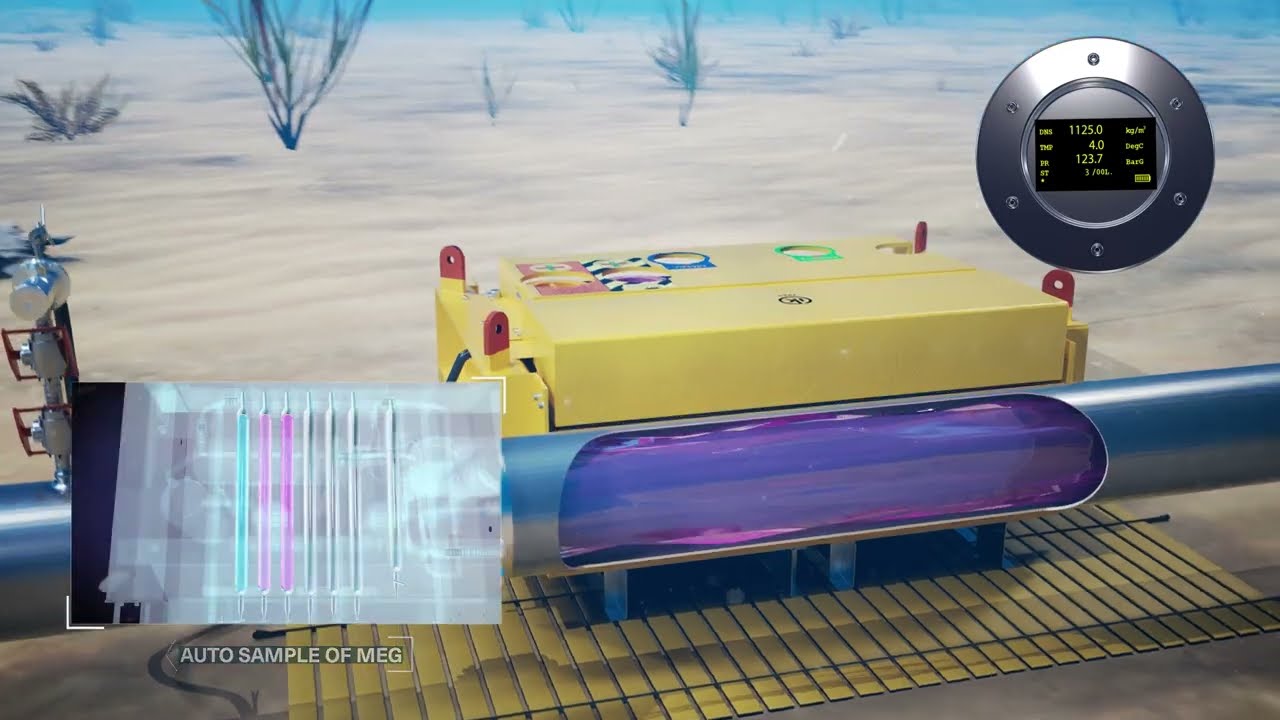

MEG ARTS® provides highly accurate and reliable analysis of Mono-Ethylene Glycol or other fluid received subsea from a pipeline conditioning train. The system can operate autonomously whilst the support vessel remains at the launch end of the pipeline.  When an ROV is available at the pig receiver, the real-time data can be monitored and sampling controlled in real time.

Pros & Limitations
1
Ensures the density of MEG and other chemicals align with your project's unique requirements.
1
Real-time analysis ensures timely decisions and seamless project flow.
1
Captures up to 7 samples directly from the conditioning train. This includes automatic samples eliminating the need for the vessel to be at the receive location.
1
Cost-effective solutions
Specification
Specification Title Specification Description
Maximum Operating Depth
3000m
Battery Life
>10 days
Skid Material
Stainless Steel
Controller Material
Alloy Bronze CA 104
Overall Dimesions
1250mm x 900mm x 410mm
Maximum Gross Weight in Air
500kg

Reviews

Get access to reviews

to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

IK Trax is an independent company within IK Group Worldwide, an engineering powerhouse that delivers innovative solutions for the complex challenges faced by the oil & gas industry. With over 25 years of expertise and a successful track record, IK-Trax specializes in designing and manufacturing pipeline pig locating and signaling equipment, as well as advanced pipeline data logging and testing systems. Their extensive product catalog includes intelligent technologies for pig locating, monitoring, and signaling, both onshore and offshore, along with systems designed to provide assurance and reduce operational costs during pipeline pre-commissioning. Several of their products are certified for use in hazardous areas, ensuring safe and convenient operations while complying with governing body regulations. Headquartered in Aberdeen, UK, and with a Dubai office, IK-Trax leverages an in-house Research & Development team to undertake custom designs and modify existing products to meet client and project-specific requirements, delivering tailored solutions that guarantee total assurance in pipeline operations.
