The only cold weld technology

Page last modified
July 3 2024

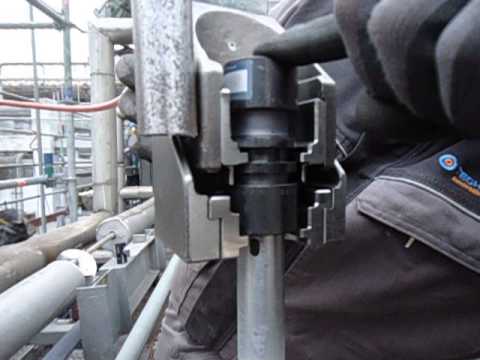

Lokring Technology manufactures a patented, metal-to-metal, butt weld equivalent connection for small bore pipes. Lokring, which qualifies to ASME B31 Piping Codes, can be installed in just 15 minutes and requires no hot-work and as a consequence no purging/drying, no habitats, no fire watch, and no NDT.

With over 30 years of experience, Lokring is proven to vastly reduce costs and schedule for maintenance, modifications, brownfield, and greenfield scopes whilst improving site safety.

Pros & Limitations
1
No hot work
1
Rapid installation
1
High integrity
1
Leak free (suitable for fully welded systems)
1
Safer operation
1
0.001% rework
0
Restricted to 4" and below
0
Restriction on materials (316/316L, 312 and 304. A106 Gr B, A333 Gr 6, ASTM A53 and API 5L. C70600)
Specification
Specification Title Specification Description
Compliance
ASME B31.1 and B31.3 Piping Codes. NACE MRO175 for Sour Service.
Certifications / lincenses
Lloyds Type Approval | American Bureau of Shipping Type Approval | IACS Type Approval | British Ministry of Defense Approval | NAVSEA US Navy Approval.
Sizes
Carbon Steel Pipes – ½” to 4” | Stainless Steel Pipes – ¼” to 3” | Copper Nickle Pipes – up to 2"
Pressure class
Couplings, elbows and other shapes suitable for class 3000#. Flange ratings 150 to 1500#
Temperature
Carbon Steel: -46 to 427ºC | Stainless Steel: -253 to 427ºC
Material
A106 Gr B, ASTM A53, API 5L, A333 Gr 6. 304/304L, 316/316L. UNS C 70600

Reviews

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

LOKRING Technology is dedicated to the relentless pursuit of perfection in understanding and satisfying the industry’s fluid and gas connection requirements. Using state of the art technology, LOKRING designs and produces the most advanced fluid and gas transfer connectors on the market today. Manufactured in our world-class facility, LOKRING fittings are produced under quality systems certified to ISO 9001:2015. The patented LOKRING connector was derived from aerospace technology and is a superior quality, leak-free fitting that is extremely reliable, easy to install, and requires no heat for installation.
