ID5001P Acoustic Pig Signaller

0 Comments
0 Followers

Magnet and Transmitter-Free Detection

Page last modified
March 19 2025

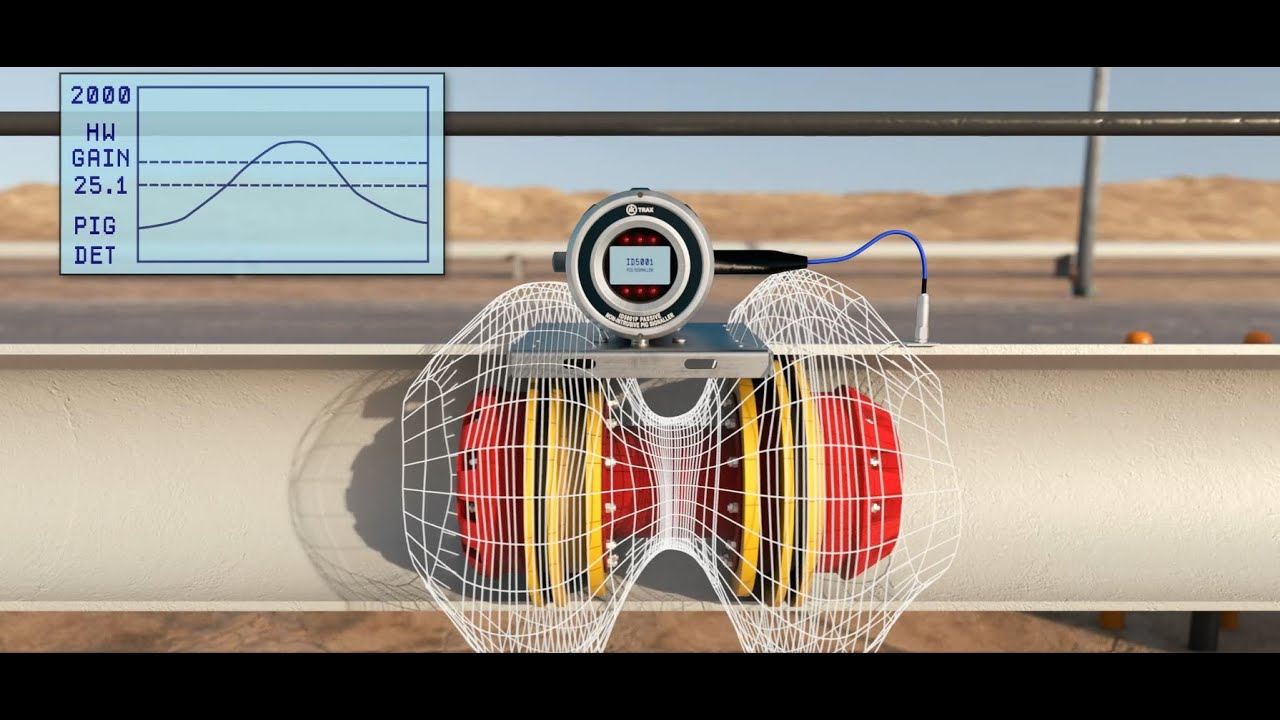

The ID5001P detects pigs in any pipeline medium with local and remote access to live data. The ID5001P is ATEX and IECEx certified for use in hazardous areas and IIC for use on hydrogen pipelines.  The unit can be quickly and easily installed using ratchet straps or stainless steel banding.  The sensor can be supplied on a cable up to 10m long for use on buried pipelines or where access is limited.  Details of pig passage are signalled on the display and can be remotely communicated using RS485 MODBUS via the operator's SCADA system. Up to 99 events can be logged with time and date.

Pros & Limitations
1
Intuitive Display for Instant Insights
1
Self-reset capabilities and remote communication options
1
Detect all pipeline mediums without the need for magnets or transmitters
1
Dedicated software provides a comprehensive view of the sensors in real-time, facilitating debugging and testing and offering a deeper understanding of the theory of operation
0
Normally the unit is used to confirm whether or not a pig has passed a known point of interest
on a pipeline such as a bend or valve. The unit should be mounted approximately 5m after the
point of interest and a test run completed to confirm successful installation and reliable detection.
Specification
Title Description
Core Tech
Instrumentation & Measurement
Typical Battery Life
15 days (Alkaline)
External Supply
24.0VDC <2.0W
Housing Material
Aluminum or 316L Stainless Steel
ATEX/UKEX/IECEx Code
Ex ia/db [ia Ga] IIC T4...T6 Ga/Gb
Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

IK Trax is an independent company within IK Group Worldwide, an engineering powerhouse that delivers innovative solutions for the complex challenges faced by the oil & gas industry. With over 25 years of expertise and a successful track record, IK-Trax specializes in designing and manufacturing pipeline pig locating and signaling equipment, as well as advanced pipeline data logging and testing systems. Their extensive product catalog includes intelligent technologies for pig locating, monitoring, and signaling, both onshore and offshore, along with systems designed to provide assurance and reduce operational costs during pipeline pre-commissioning. Several of their products are certified for use in hazardous areas, ensuring safe and convenient operations while complying with governing body regulations. Headquartered in Aberdeen, UK, and with a Dubai office, IK-Trax leverages an in-house Research & Development team to undertake custom designs and modify existing products to meet client and project-specific requirements, delivering tailored solutions that guarantee total assurance in pipeline operations.
