ID5000 Active Ultrasonic Pig Signaller

0 Reviews
0 Followers

Not Just a Pig Signaller

Page last modified
March 19 2025

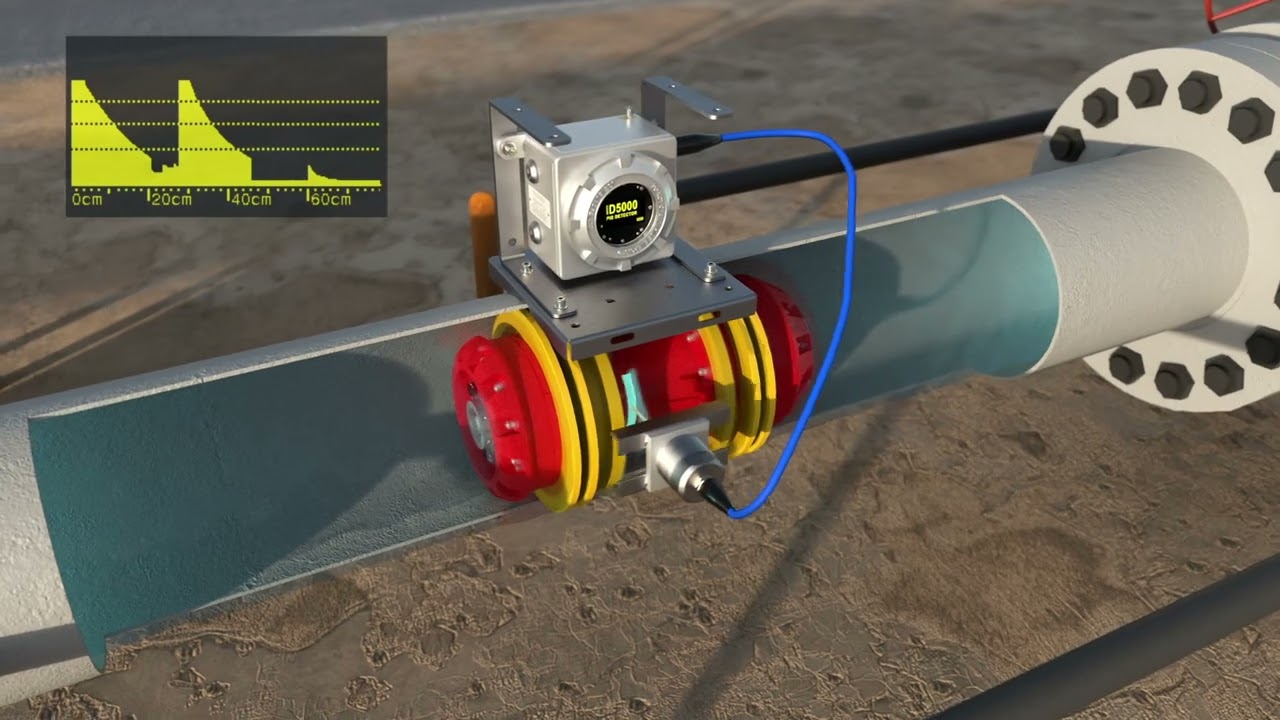

The ID5000 Active is a fully ATEX-certified, non-intrusive pig signaller which detects, signals and logs the passage of pigs at critical points along a liquid pipeline both onshore and offshore.  The ID5000A can also be used to confirm the position of pigs in the receiver, providing confirmation that they have passed the isolation valve.

Pros & Limitations
1
Dual functionality - both signalling and location confirmation
1
No requirement for pig to carry magnets or transmittters
1
Can be configured to ignore debris and small objects, reducing the risk of false detections
0
Only suitable for liquid pipelines
Specification
Specification Title Specification Description
Typical Battery Life
120 days (Alkaline) 12 days (Rechargeable)
External Supply
21.6VDC to 26.4VDC
Housing Material
Aluminium or 316L Stainless Steel
ATEX Code
II 2 G Ex d mb IIC T5...T6
Enclosure Ingress Protection
IP66

Reviews

Get access to reviews

to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

IK Trax is an independent company within IK Group Worldwide, an engineering powerhouse that delivers innovative solutions for the complex challenges faced by the oil & gas industry. With over 25 years of expertise and a successful track record, IK-Trax specializes in designing and manufacturing pipeline pig locating and signaling equipment, as well as advanced pipeline data logging and testing systems. Their extensive product catalog includes intelligent technologies for pig locating, monitoring, and signaling, both onshore and offshore, along with systems designed to provide assurance and reduce operational costs during pipeline pre-commissioning. Several of their products are certified for use in hazardous areas, ensuring safe and convenient operations while complying with governing body regulations. Headquartered in Aberdeen, UK, and with a Dubai office, IK-Trax leverages an in-house Research & Development team to undertake custom designs and modify existing products to meet client and project-specific requirements, delivering tailored solutions that guarantee total assurance in pipeline operations.
