GARD U-line™ Conveyance Roller System

0 Reviews
0 Followers

GARD U-line™ Roller System for reducing cost and carbon impact of well-intervention

Page last modified
April 11 2024

GARD U-line™ Roller System is a novel, cost-effective and the world’s first all-in-one universal, modular and multifunction downhole conveyance roller system that services all types of operation whether it is slick-line, e-line, fiber or any other data cabling or tubing system.

The U-Line roller has a very low friction coefficient (less than 3%). This means extended reach in deviated wells (3x that of our competitors) and the proven ability to replace tractor systems. In less deviated wells U-Line has successfully reduced cable tension risks caused by wellbore obstructions. The tool is highly adaptable in that it can run both WL and SL, and the OD can be changed in the field by using different OD wheels.



Pros & Limitations
1
Low friction means TD can be reached without tractor even in high deviation wells
1
Only two chassis sizes to cover all casing sizes and restrictions
1
Can run on slickline, e-line or fiber with same roller
1
No screws or fasteners to reduce risk and maintain in the field
1

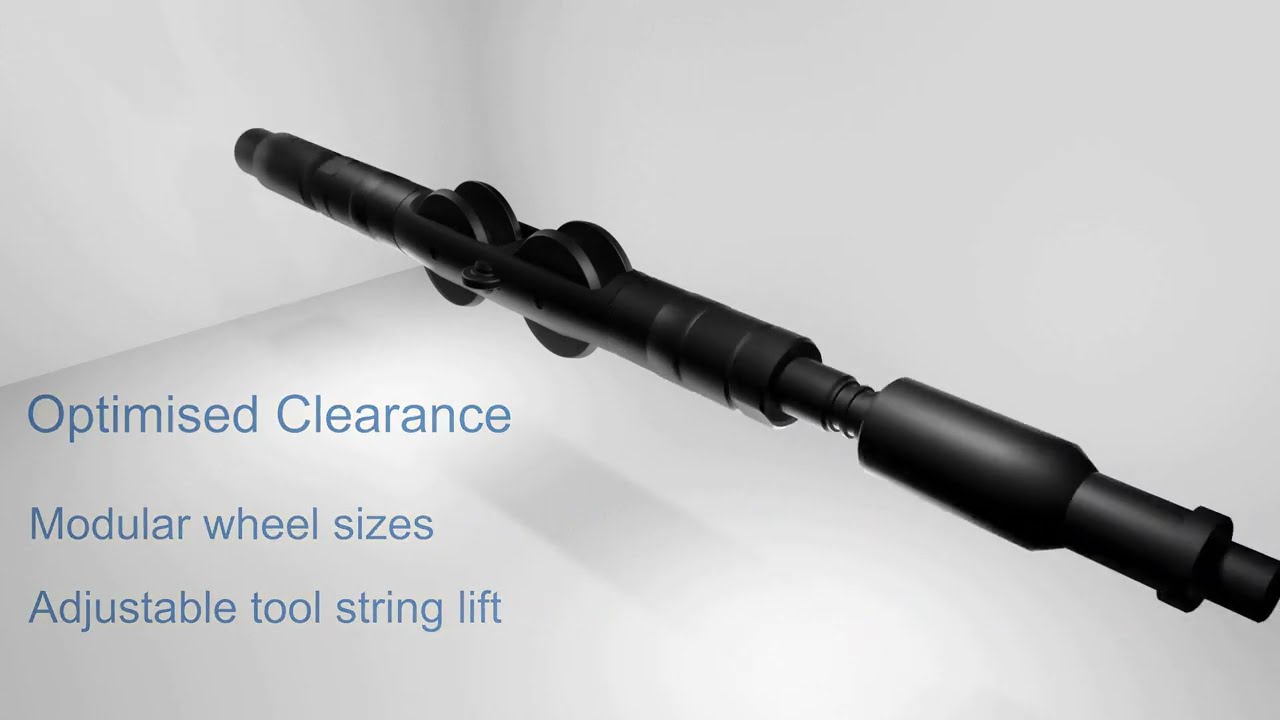

High clearance allowing centralisation of toolstring
1
Running jobs on slickline minimises operational footprint / carbon footprint
1
Operational team and software analysis provided
1
Global fleet means shorter/quicker logistics
0
Current fleet is mainly applicable for cased-hole not open-hole intervention (open-hole in development)
Specification
Specification Title Specification Description
WR01 Series
For Tubing - 2 3/8" - 2 7/8"
WR02 Series
For Tubing 3 1/2" - 4 1/2"+
Material
Comes in Standard and Sour Service
WR01 Series Length & Weight
700mm / 6kg
WR02 Series Length and Weight
900mm / 12.5kg

Reviews

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

GA R&D Ltd develop highly innovative technology solutions for the energy sector. Our technologies are truly disruptive, targeting step-changes in performance and design efficiency to drive cost savings and sustainability.

Introducing GARD U-Line™ – A next generation conveyance technology key to downhole interventions in the Oil & Gas and Geothermal sectors. The revolutionary design incorporates automotive technology characteristics to simplify operations and deliver huge cost savings and substantially increase the sustainability of this sector. Case-studies and details for acquiring GARD U-Line™ Rollers can be found here https://ga-rd.co.uk/gard-u-line-technologies/

Introducing 3C-Steam™ Turbines – A revolutionary thermodynamic process which redefines steam power generation efficiency whilst reducing carbon emissions by up to 25%. The technology dramatically reduces the cost of building and operating power plants and completely removes the need for cooling towers.
