Deep Perforating Tool

0 Reviews
0 Followers

Dual Casing - Explosive-free hydraulic system for casing perforation

Page last modified
June 13 2025

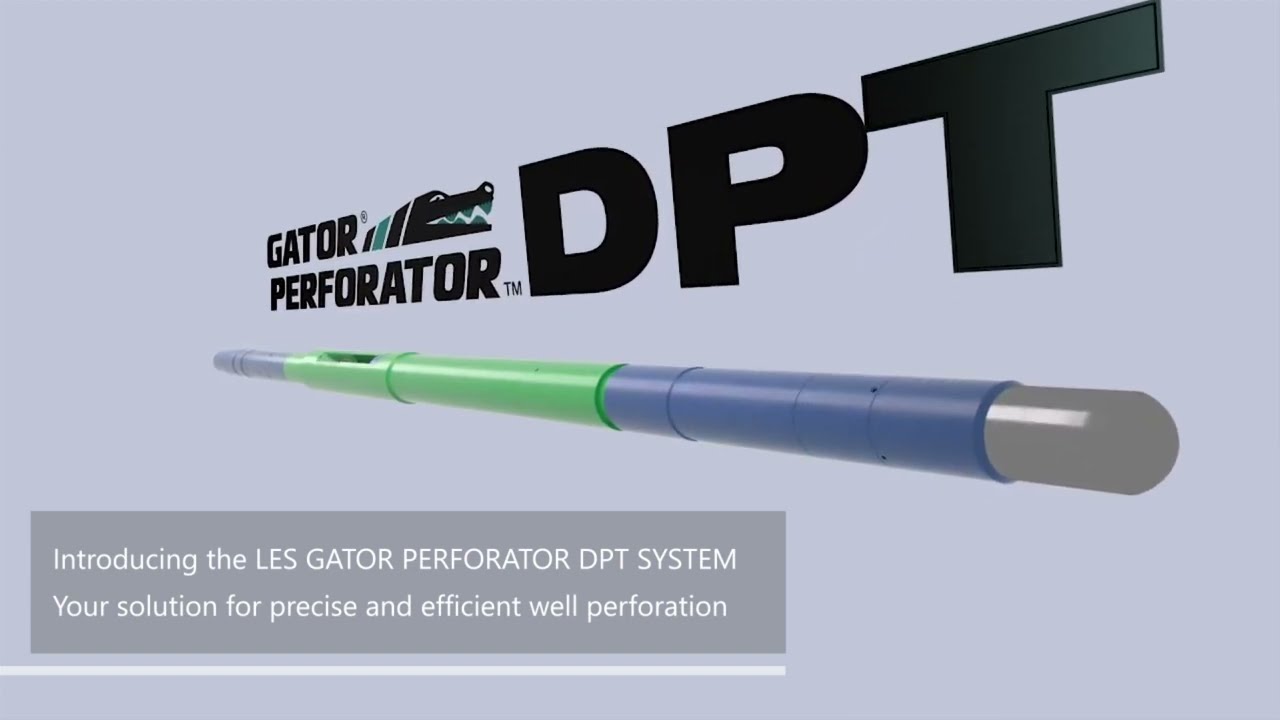

The Deep Perforating Tool (DPT) evolved from the 4 blades Gator perforator and is a Single-Bladed, Repeatable, Hydro-Mechanical Casing Perforator capable of perforating through 2 casing sizes and eliminates the need for Explosives on the rig.



It can be deployed on Coil tubing or Jointed pipe, dependent on tool size. Its function is to mechanically perforate 1 large TFA vertical slot in both casings (per activation) creating a flow path to the B and C annulus or into the formation.



The operation of casing perforation can be repeated as many times as required. The DPT is compatible with packers and bridge plugs, that allows multiple operations to be performed in a single trip. Once the bridge plug is set, the DPT is activated to achieve the required footage of perforation. The circulation behind the casing can now be performed, and a cement barrier is placed to complete the P&A operation.



The DPT is logistically and environmentally friendly, easily mobilized for onshore or offshore applications. Reducing your risk, POB as well as your footprint on the rig site.

Pros & Limitations
1
Safer solution / Explosive-free
1
Can perforate a wide range of tubing/casing sizes - 3 1/2" - 20"
1
Multi repeatable activations
1
Penetration depth control
1
Can be run on both coil and jointed tubing
1
Compatible with third-party packers, Plugs and Circulation subs.
Specification
Title Description
Theme/Discipline
Well OperationsWell Plug and AbandonmentAbandonment & Decommissioning
Core Tech
Hardware Tool
Industry
GeothermalOil
Tool Sizes
275, 360, 438, 570, 600, 825
Size Range
3 1/2" - 20" casing
Features
Repeatable hydro-mechanical multi-use perforating system. Single trip system. One bladed design to perforate two casing strings at once, Large TFA per activation, HPHT compliant, Proven reliable execution method, Variable blades depending on operation, Key performance indicators at the surface during execution, multiple activations should the annulus be packed off , No explosives, No sump required, No permits required.

Reviews

Get access to reviews

to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

Lee Energy Systems is proud to be a part of the Global Energy Industry. Our hydraulic-based stimulation and completion tools and assemblies can ship anywhere around the world and operate under the harshest conditions. Lee Energy Systems offers four core tools: The Gator Perforator (explosive-free Multi activation perforation tool); The Deep Perforation Tool (DPT)  (Dual Casing perforation Tool); Mega Packer (A/B Annulus cement support barrier tool) and The Speed Squeeze (unlimited multi-zone isolation tool); - which can be configured in multiple abandonment, well intervention, stimulation, and completion applications. By eliminating contingencies otherwise required when operating with explosives, reducing run times, and reducing well consumables, our technologies reduce costs - operational and environmental. By focusing on safety, reliability, and efficiency, LEE ENERGY SYSTEMS designs custom solutions for the Energy Industry that Increase value and reduce operational risks and environmental impact.
