Protect your critical piping and equipment

Page last modified
April 11 2024

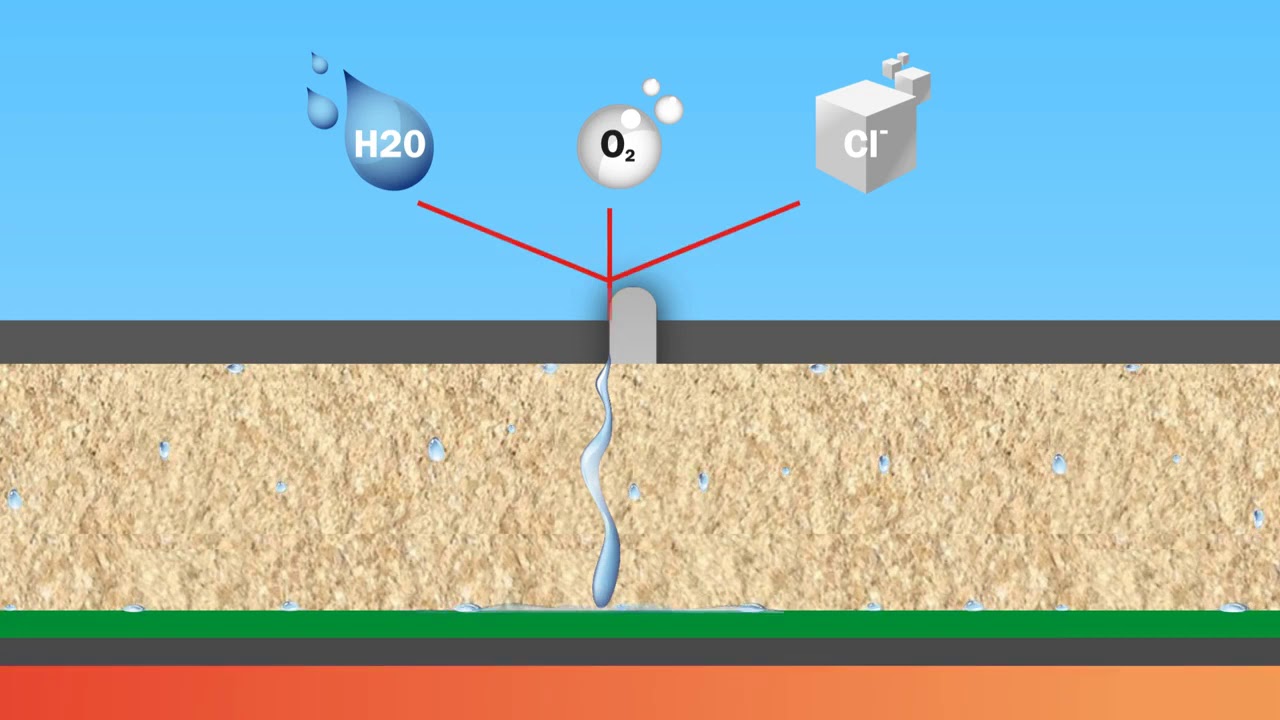

Hempel has developed a unique coating system to help protect from the hidden dangers of CUI.

In just two coats long term protection in hot wet environments such as those found below thermal insulation can be provided.

The system is based upon polysiloxane technology but with a unique fibre reinforced filler system which helps provide additional protection from cracking due to high temperatures and thermal cycling.

Pros & Limitations
1
Heat resistance up to 650°C covering multiple specification categories
1
Single pack eliminates mixing errors and reduces wastage
1
Can be applied to surfaces up to 200°C eliminating the need to shut down
1
Suitable for insulated and uninsulated equipment simplifying coating selection
1
Low halogen content – suitable for stainless steel
0
Limited range of colours
Specification
Specification Title Specification Description
Areas of Application
For long term protection of hot pipework, equipment and other hot surfaces.
Application
Applied directly onto the steel substrate or with a suitable inorganic primer.
Certifications/ Licenses
Conforms to NACE SP-0198 2017 : systems SS-5, CS-6 and CS-8
Preparation
Can be applied to grit blasted and manually prepared surfaces.
Service Temperatures
-196°C to 650°C
NORSOK M-501 Approval
Approved in conjunction with inorganic zinc silicate primer.

Reviews

Get access to reviews

to your explorer or platform subscription to get access to the reviews written about this technology.

Technology Readiness Level

The Technology Readiness Level (TRL) indicates the maturity level of novel technologies. Learn more about the TRL scale used by us.

[9/9]

Development Technology demonstration Mature / Proven
Ask the supplier
 to contact this technology supplier.

Hempel is a world-leading coatings supplier to the decorative, protective, marine, container and yacht markets.

From windmills and bridges to hospitals, ships and homes, our coatings protect man-made structures from the corrosive forces of nature. They help prolong a structure's service life, reduce maintenance costs and, we like to think, make it more attractive.
